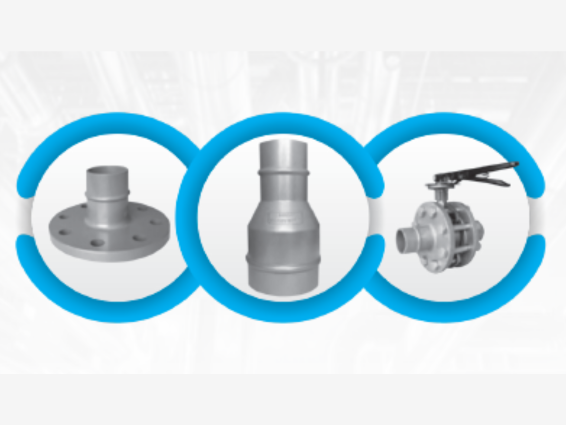

Compressed air aluminium fittings
TAPCO FST aluminium fittings are commonly used in compressed air systems due to their durability and resistance to corrosion. They offer reliable connections for various applications, ensuring efficient and leak-free operation. If you have specific questions about FST aluminium fittings or need assistance with anything related to compressed air systems, feel free to ask!
| Pipe Fittings | DN20 3/4" | DN25 1" | DN32 1-1/4" | DN42 1-1/2" | DN50 2" | DN65 2-1/2" | DN80 3" | DN100 4" | DN125 5" | DN148 6" | DN200 8" |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Equal Pipe to Pipe Connector | |||||||||||
| Reducing Tee | |||||||||||
| 90° Elbow | |||||||||||
| Equal Tee | |||||||||||
| Reducing Tee | |||||||||||
| Quick Drop | |||||||||||
| Female Threaded Quick Drop | |||||||||||
| Put in Fit Valve | |||||||||||
| End Cap | |||||||||||
| Circular Aluminium Flange |
PIPE TECHNICAL SPECIFICATIONS
- Pipe length:6m;
- Maximum Working Pressure : 13bar;
- Applicable temperature: -29°c + 80°c;
- Suitable for: compressed air, vaccum, nitrogen, inner gases etc.
- Coating adhesion: 100 grid knife testing, 0level qualified
- Corrosion resistance: 500H neutral salt spray test , appearance grade 10;
- Coating film thickness: electrostatic spraying -color number: customizable, using DuPont powder, thickness = 70 +/-10 pm;
- Chemical Composition: meet the requirements of GB/T 3190-2008 "Chemical composition of wrought aluminium and aluminium alloy", density 2.7kg/dm3-,
