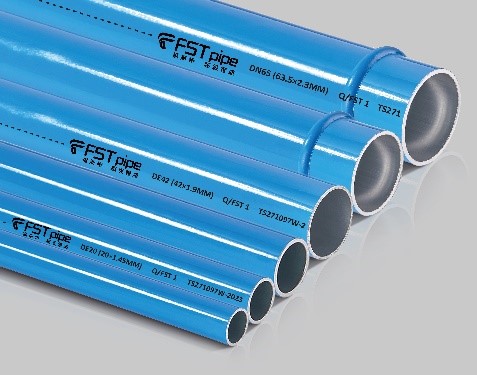

Elevate your system with TAPCO FST aluminium pipes
Experience unrivalled performance and reliability with TAPCO FST compressed air piping solutions. Our state-of-the-art aluminium pipes are engineered for maximum efficiency, delivering seamless airflow, and minimizing pressure drops. With easy installation, durability, and corrosion resistance, FST pipes ensure optimal operation for your compressed air system.
Product Features & BenefitsProduct Highlights
Perfect Compatibility
Universal used in each brand air compressor and post-processing equipment and pneumatic supporting
Suitable for almost harsh environments
Excellent resistance for the following environment, mechanical vibration, thermal change environment, ultraviolet light, the environment containing compressor oil.
Safe
Strong and durable, not easy to burn materials and components have extremely high pressure resistance.
Energy Saving
No maintenance and reusal for system moving.Smooth inner surface for lower pressure drops and energy saving
Pipe data sheet
| Product Number | Standard | Outer Diameter (mm) | Inside Diameter (mm) | Pipe Length (m) | Product Description |
|---|---|---|---|---|---|
| 17226000 | DN20 | 20 | 17.1 | 6 | 020X1.45 |
| 17336000 | DN25 | 24.8 | 21.9 | 6 | 024.8X1.45 |
| 2015336000 | DN32 | 32.2 | 29 | 6 | 032.2X1.6 |
| 17556000 | DN42 | 42 | 38.2 | 6 | 042X1.9 |
| 2015556002 | DN50 | 50.6 | 46.4 | 6 | 050.6X2.1,both ends bead rolled |
| 2019666002 | DN65 | 63.5 | 58.9 | 6 | 063.5X2.3,both ends bead rolled |
| 2019886002 | DN80 | 88.9 | 83.7 | 6 | 088.9X2.6,both ends bead rolled |
| 2015996002 | DN100 | 100.2 | 94.7 | 6 | 0100.2X2.6,both ends bead rolled |
| 16CC6002 | DN125 | 133 | 127.5 | 6 | 0133X2.75,both ends bead rolled |
| 16CC6002 | DN125 | 133 | 127.5 | 6 | 0133X2.75,both ends bead rolled |
| 2015AA6002 | DN148 | 148.2 | 142.2 | 6 | 0148.2X3,both ends bead rolled |
| 2015BB6002 | DN200 | 205 | 198.6 | 6 | 0205X3.2,both ends bead rolled |
PIPE TECHNICAL SPECIFICATIONS
- Ambient temperature: -29°C + 80°C
- Maximum Working Pressure:13bar
- Vacuum: 0.013bar absolute pressure (compatible with all compressor oils)
- Suitable for outdoor installation: FST Pipe series are fire-resistant (in line with UL-90-VO Standard) seamless extruded aluminium pipe
- GB/T4437.1-2015;
- FST Pipe series obtained CE and TS certification
Reasons to choose TAPCO FST
Full Adaptable
Time Saving
Cost Saving
Easy Installation
Fast & Easy
Clean & Safe
10 Years Quality Assurance & Guarantee
*Terms apply. Please contact Tapco for details.
